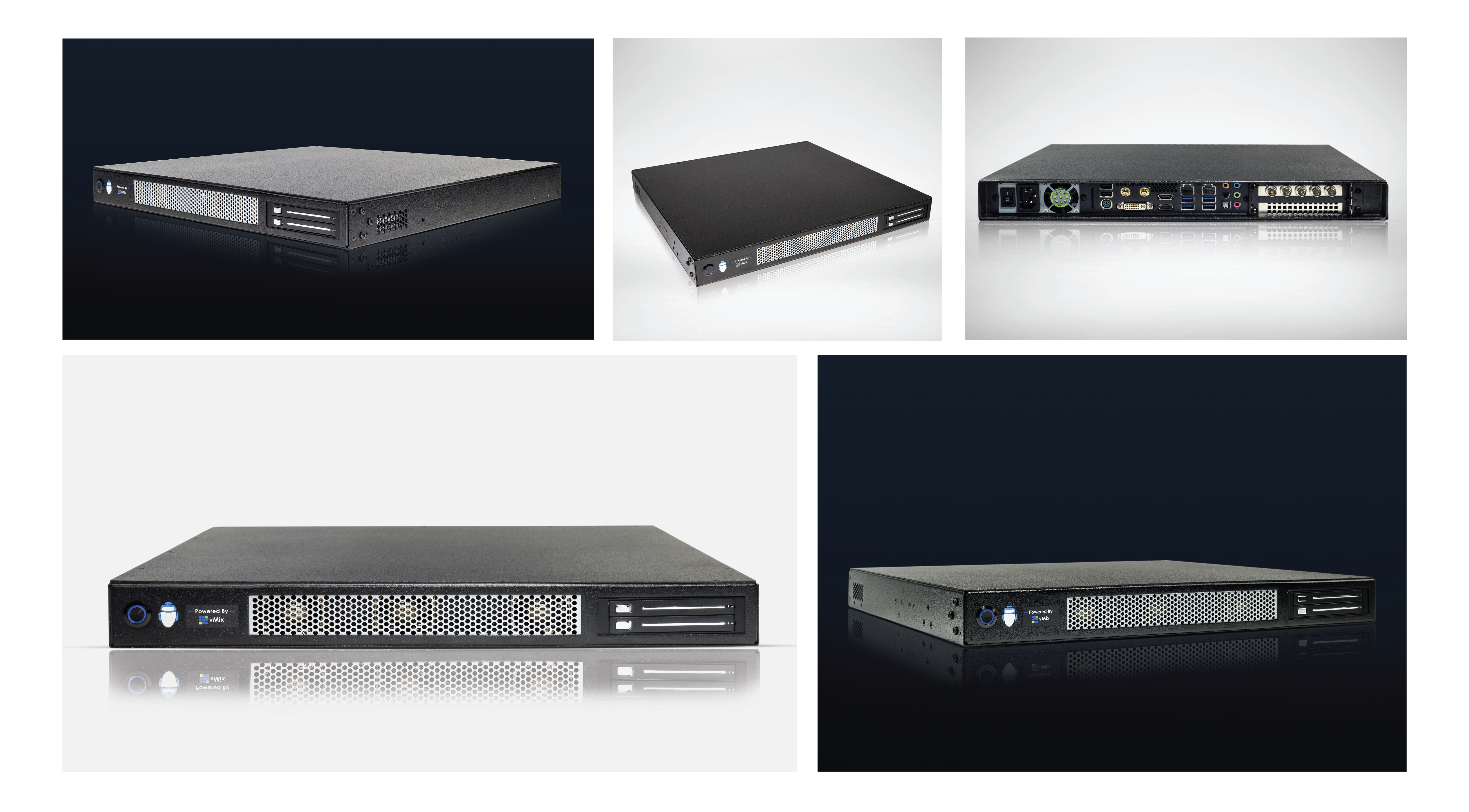

PRODUCTION BOT ® RACK UNIT
RACKMOUNT BROADCAST STUDIO
Intel Quad Core CPU with Iris Pro Graphics, 16GB Memory, Gigabit LAN and WIiFi, Windows 10, vMix 4K, vMix Social and vMix Title Designer preinstalled.

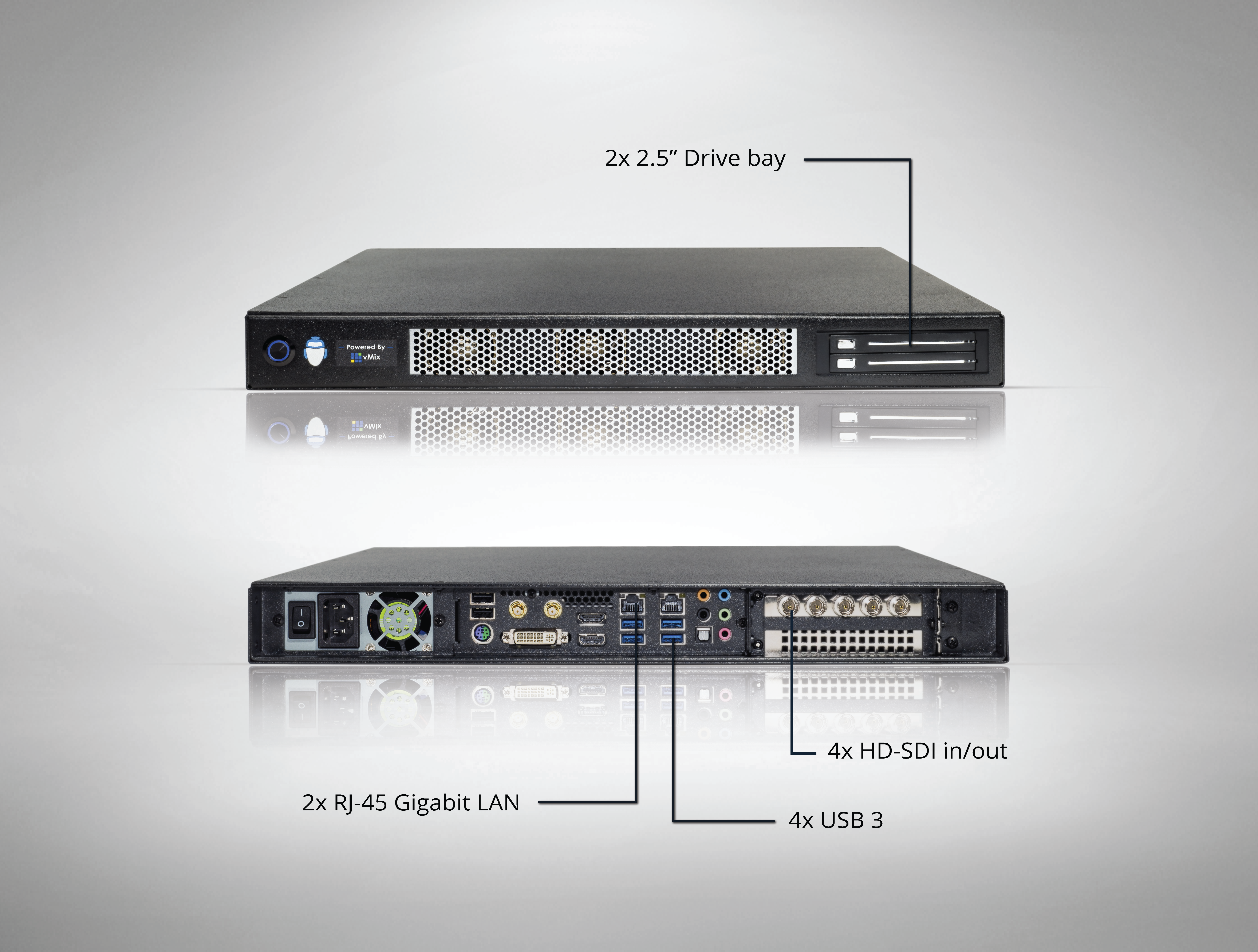

512GB Internal SSD Storage. 2 Hot-swap Tray-less SSD Drive bays for potentially unlimited plug and play storage.
- Video Inputs
Up to 4 simultaneous live HD-SDI video sources w/embedded audio in any combination of HD and SD format
- Audio Inputs
16-channel SDI embedded, compatible with USB devices
Up to 1000 multi-source inputs including video/audio files up to 4K resolution, PowerPoint (Microsoft Office Req.), graphics, streams, desktop apps, titles, live social media.
Cut, Fade, Zoom, Wipe, Slide, Fly, CrossZoom, FlyRotate, Cube, CubeZoom,VerticalWipe, VirtualSlide, Merge and two custom Stinger channels.
Each input includes 5 “Multi View” overlay channels to create complex Mix/Effects. Add logo bugs, lower thirds, titles, text in combinations to create compelling productions."
- Downstream Keyers
4 DSKs / overlays with individual transitions, alpha channel and custom scaling/positioning.
- Image AdjustmenT
Color Correct, Deinterlace, Sharpen, Zoom, Rotate, Pan and Crop any input in real time. All effects are processed in 4:4:4 32bit color space for optimal video quality.
- "Audio Mixer "
Independent control and monitoring of all audio sources with Mute, Solo, Follow (Auto Mixing), Delay, EQ, Compressor and Gain.
- Virtual Sets
6 free virtual sets from Virtualsetworks.com ($1374 value). 5 built-in sets with full motion camera presets and high quality GPU-based chroma key. Easily build your own virtual set using standard tools
- Desktop capture
Included screen capture from local/remote PC-Mac sources
- vMix Call
Live interview solution for up to 2 guests. connect guests into your live show with HD video and high quality video with only a web browser and a webcam
Support for multi-channel video input and output over a Gigabit Ethernet network using open Network Device Interface protocol
- Instant Replay
Single camera instant replay system built in with continuous recording and playback.
Includes standard keyboard and mouse control with configurable shortcuts/macros. Built in Web Controller can be used to control vMix from any web connected device on the local network. MIDI controllers also supported
- Social Media
Integrated application for live or queued insertion of Facebook, Twitter or IRC feeds. Approve and control content from any web-connected device
Simultaneous record, stream and output to multiple formats/resolutions
- Video Outputs
2x 3G/HD/SD-SDI, 2x DisplayPort 1.4, 2x HDMI 2.0, 2x DVI-D Dual-link
- Audio Outputs
1/8” Stereo, 2-channel SDI embedded
AVI, MP4, MPEG-2, MOV and MXF for both Program and ISO recordings with a variety of compression formats available.
- Live Streaming
RTMP streaming to any CDN including USTREAM, Twitch, DaCast, YouTube and more
Live multiviewer output to secondary display or HD-SDI with configurable layouts and titles, audio meters and tally display.
- Supported Live Video Formats
1080P, 1080i, 720p and SD Multi Format capable. 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 frame rates supported.
- Physical Dimensions
16.75’ (W-not including side rails) x 1.75” (H) x 16” (D)
Rack ear kit for rack mounting, adhesive rubber feet for desktop usage, WiFi Antenna
