Switch 8


Up to 8 Live Input/output

Alt Alt

Technical Specifications

  • General

    i7-10700K 5.10 Ghz processor, RTX A5000 24GB DDR6 graphics, 32GB Memory, Gigabit LAN, Windows 10 Home, vMix Pro, vMix Social and vMix Title Designer

  • Storage

    500GB Internal SSD Storage, 1TB additional storage in removable hot-swap bay, 4 Hot-swap SSD Drive bays for potentially unlimited plug and play storage.

  • Video Inputs

    Up to 8 simultaneous live HD-SDI video sources w/embedded audio in any combination of HD and SD format

  • Audio Inputs

    16-channel SDI embedded, compatible with USB devices

  • Media

    Up to 1000 multi-source inputs including video/audio files up to 4K resolution, PowerPoint (Microsoft Office Req.), graphics, streams, desktop apps, titles, live social media.

  • Transitions

    Cut, Fade, Zoom, Wipe, Slide, Fly, CrossZoom, FlyRotate, Cube, CubeZoom,VerticalWipe, VirtualSlide, Merge and two custom Stinger channels.

  • Mix/Effects

    Each input includes 5 “Multi View” overlay channels to create complex Mix/Effects. Add logo bugs, lower thirds, titles, text in combinations to create compelling productions."

  • Downstream Keyers

    4 DSKs / overlays with individual transitions, alpha channel and custom scaling/positioning.

  • Image Adjustment

    Color Correct, Deinterlace, Sharpen, Zoom, Rotate, Pan and Crop any input in real time. All effects are processed in 4:4:4 32bit color space for optimal video quality.

  • "Audio Mixer "

    Independent control and monitoring of all audio sources with Mute, Solo, Follow (Auto Mixing), Delay, EQ, Compressor and Gain.

  • Desktop capture

    Included screen capture from local/remote PC-Mac sources

  • vMix Call

    Live interview solution for up to 8 guests. connect guests into your live show with HD video and high quality video with only a web browser and a webcam

  • NDI

    Support for multi-channel video input and output over a Gigabit Ethernet network using open Network Device Interface protocol

  • Instant Replay

    Multi camera instant replay system built in with continuous recording and playback.

  • Controllers

    Includes standard keyboard and mouse control with configurable shortcuts/macros. Built in Web Controller can be used to control vMix from any web connected device on the local network. MIDI controllers also supported

  • Social Media

    Integrated application for live or queued insertion of Facebook, Twitter or IRC feeds. Approve and control content from any web-connected device

  • Output

    Simultaneous record, stream and output to multiple formats/resolutions

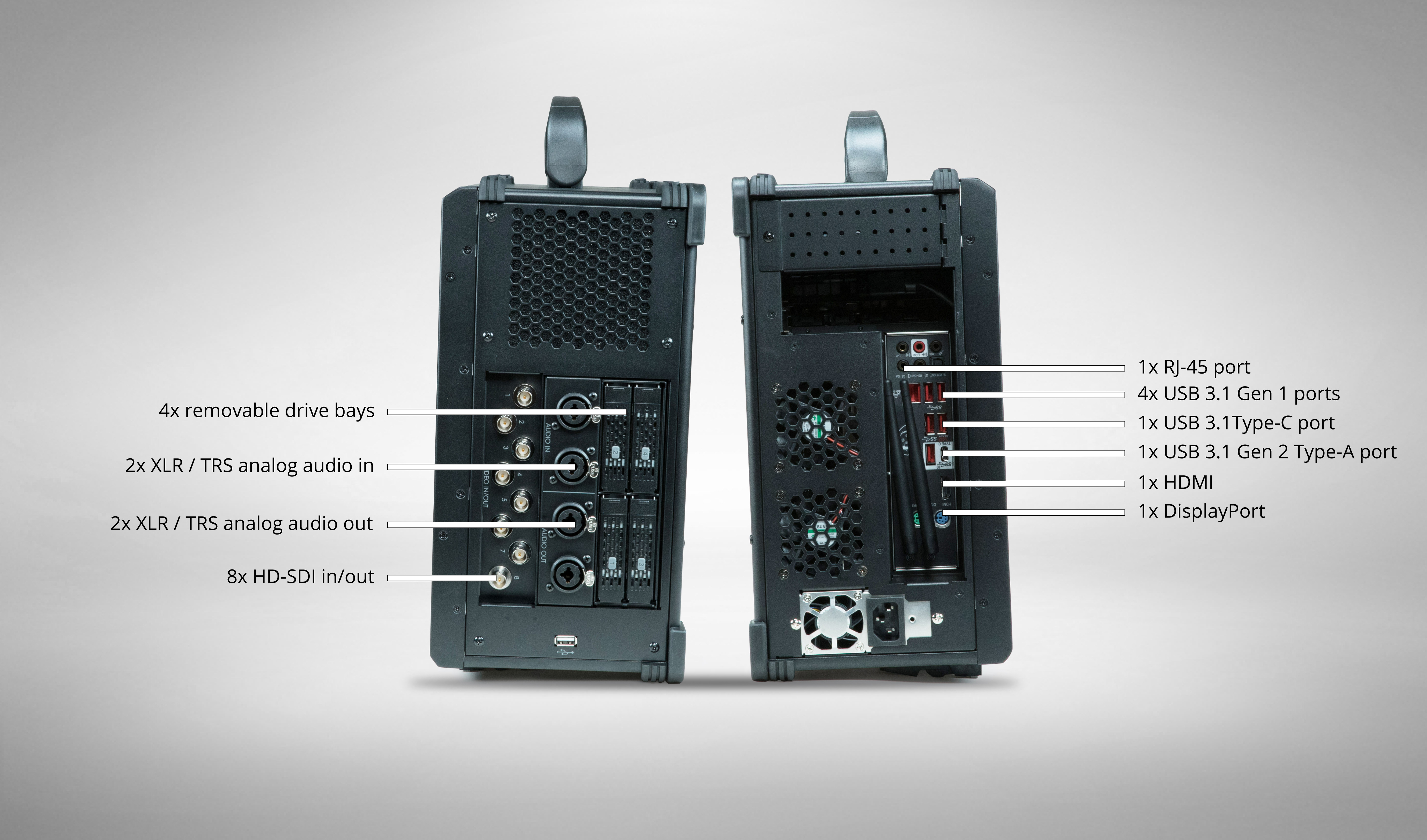

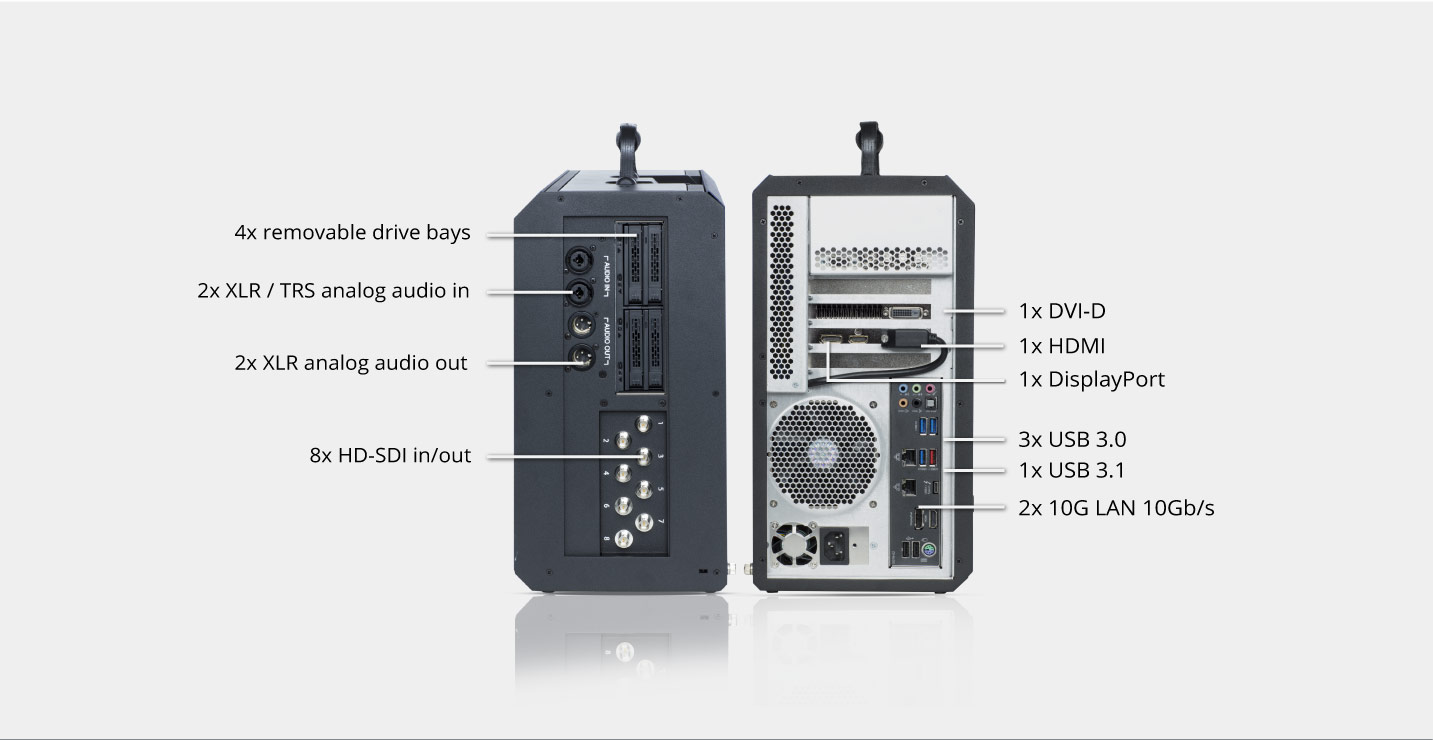

  • Video Outputs

    2x 3G/HD/SD-SDI, 2x DisplayPort 1.4, 2x HDMI 2.0, 2x DVI-D Dual-link

  • Audio Outputs

    1/8” Stereo, 2-channel SDI embedded

  • Recording

    AVI, MP4, MPEG-2, MOV and MXF for both Program and ISO recordings with a variety of compression formats available.

  • Live Streaming

    RTMP streaming to any CDN including Twitch, LinkedIn,YouTube and more

  • Multiview

    Live multiviewer output to secondary display or HD-SDI with configurable layouts and titles, audio meters and tally display.

  • Supported Live Video Formats

    1080P, 1080i, 720p and SD Multi Format capable. 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 frame rates supported.

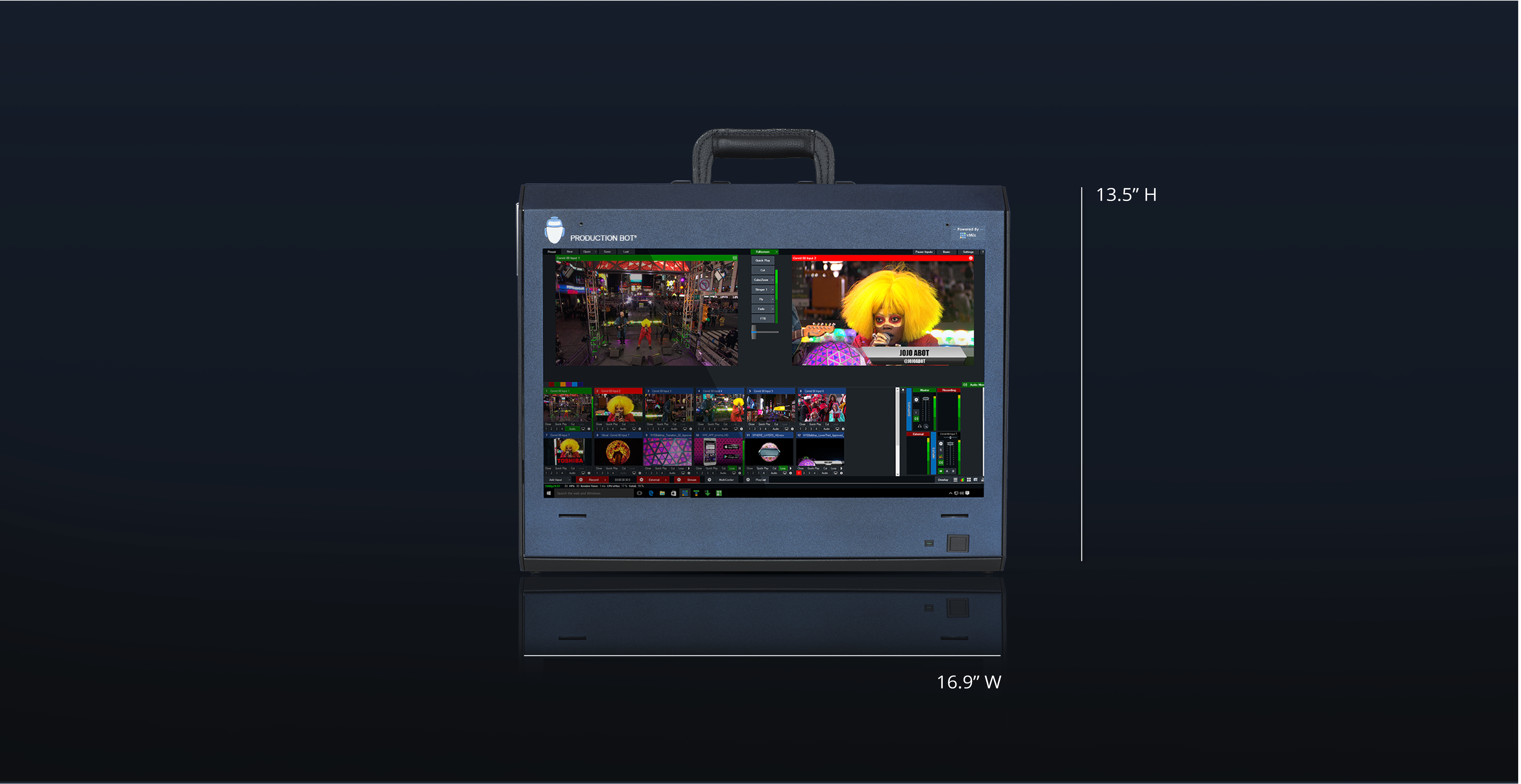

  • Physical Dimensions

    7" (D) x 13.5" (H) x 16.9" (W)

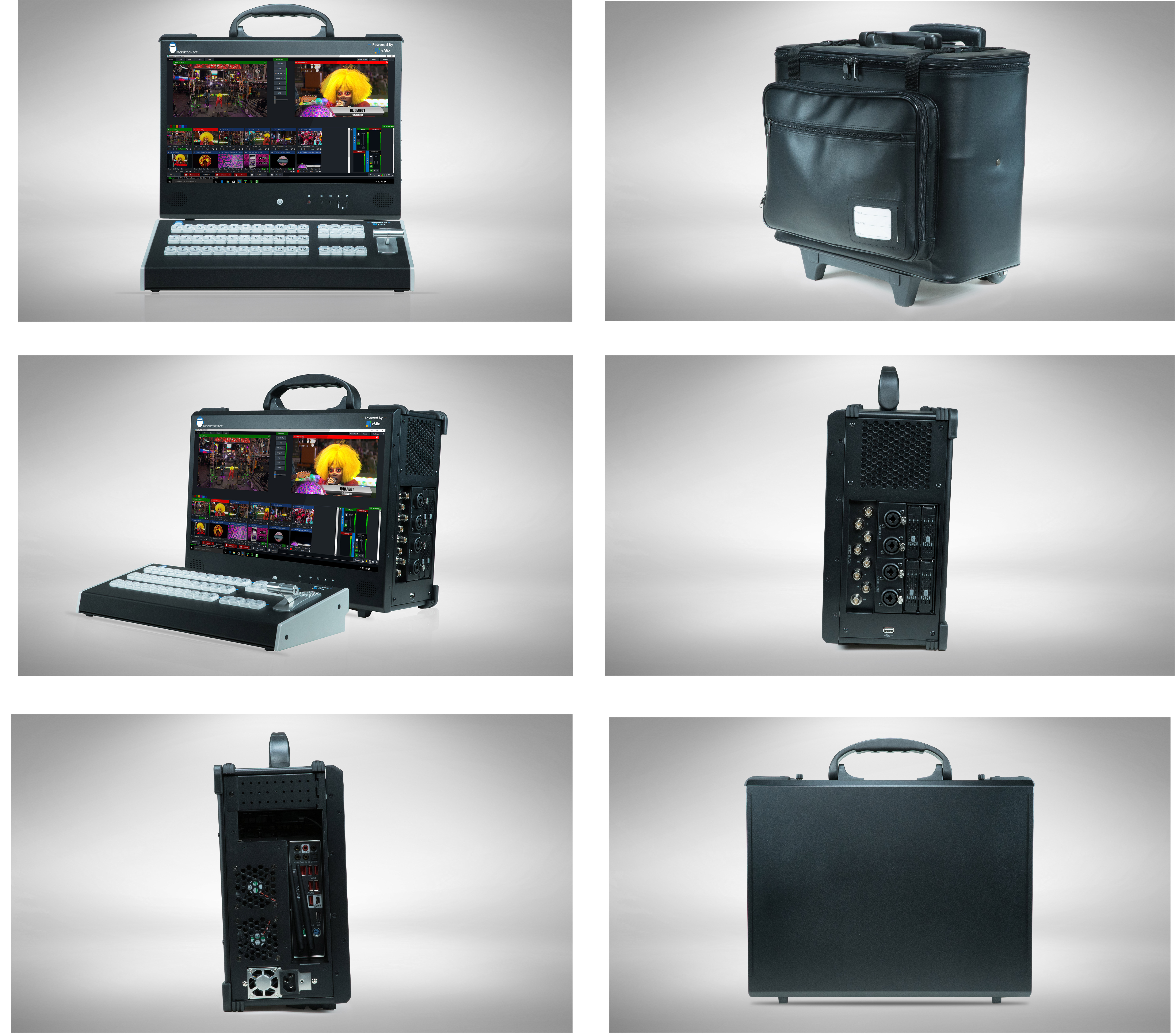

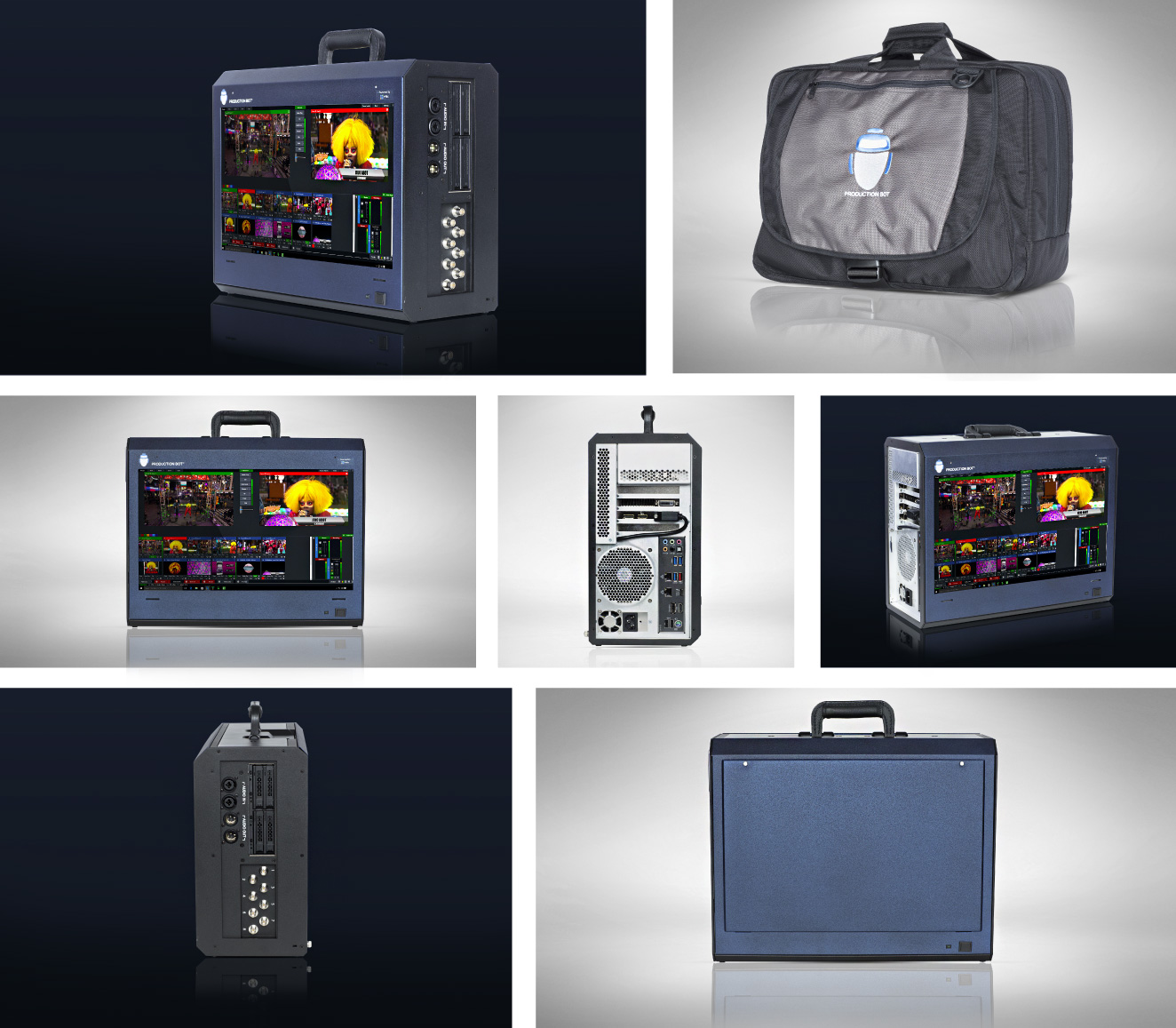

  • Accessories

    Rolling bag with telescoping handle, Shuttle replay controller, USB keyboard, USB mouse, USB Wi-Fi adapter.
